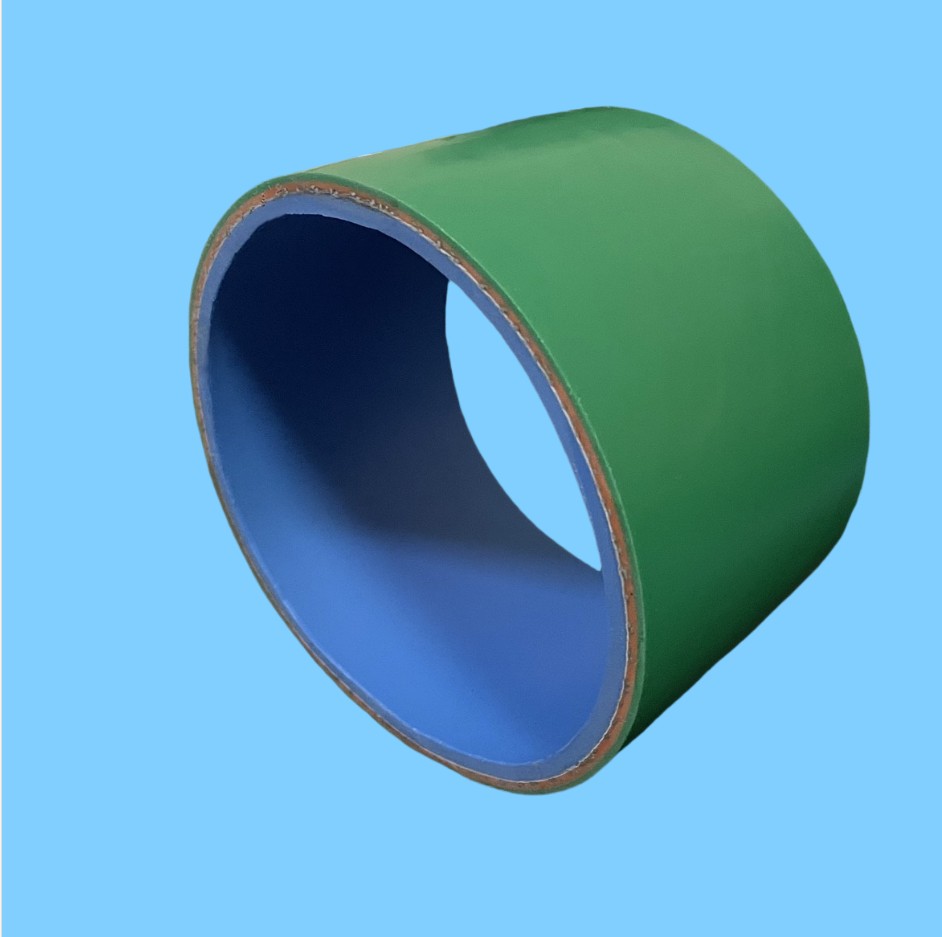

Steel Wire Reinforced Polyethylene Pipe--Continuous Glass Fiber-Reinforced Polyethylene Composite Pipe

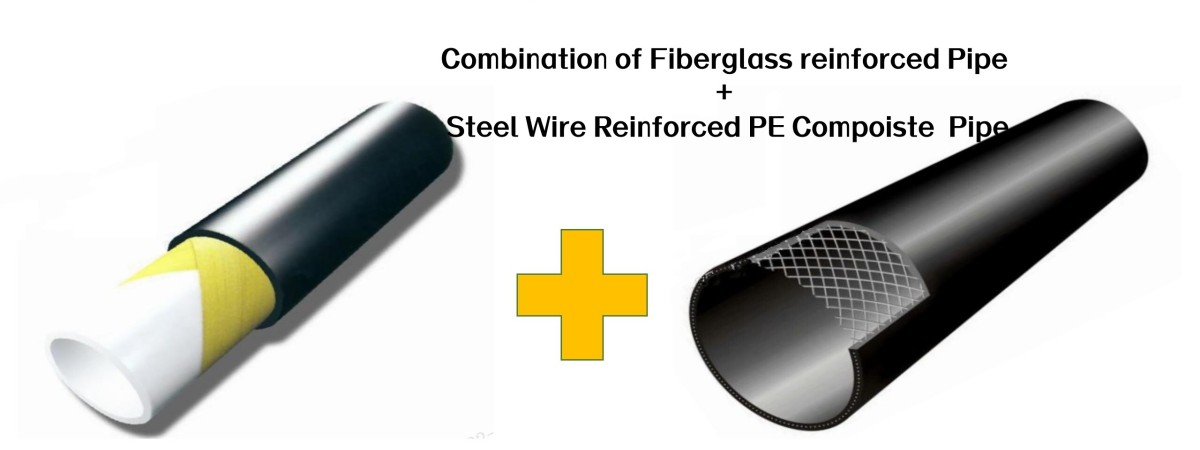

Continuous Glass Fiber-Reinforced Polyethylene Composite Pipes have been used in the oil industry for many years and have been recognized by the industry. However, the connection method is costly and most products are supplied in the form of coiled pipes. In addition, the production difficulty and transportation cost of coiled pipes with dn>160mm are high, which limits the application and development of the product. Fiber-reinforced steel wire mesh skeleton polyethylene pipe uses left and right spiral fiber strips and high-strength steel wire as reinforcement materials. The pipe combines the dual advantages of continuous glass fiber reinforced polyethylene composite pipes and steel wire mesh skeleton polyethylene composite pipes. The steel wire layer plays a role of reinforcement and protection, protecting the structural stability of the glass fiber when it is squeezed and stressed. At the same time, the protective effect of the steel wire layer can greatly reduce the connection cost of continuous glass fiber reinforced polyethylene composite pipes and promote the promotion and application of pipes.

Pipe Features:

1.Innovation composite pipe, save more cost but more durable

2. Double reinforced structure, more strong higher quality;

3. Tested on the set pressure of 2.5Mpa, the burst pressure reaches to 8.56Mpa.

Product Application

Mainly suitable for urban water supply, building water supply, fire water supply, drinking water, special fluid (including suitable industrial wastewater, corrosive gas slurry, solid powder, etc.) transportation pipes.

Product advantage

The main material of the product is high-density polyethylene resin, which has the traditional characteristics of plastic pipes:

Strong adaptability to terrain

The pipe takes into account the flexibility of plastic pipes when under pressure, can be bent and laid to reduce the application of pipe fittings and change with the terrain when the terrain settles.

Long service life

Polyethylene pipe materials have a long design life, and the extrapolated service life of the pipe under normal use conditions is 50 years.

Economical and efficient

The pipe is lighter than concrete pipes, galvanized pipes and steel pipes, easy to carry and install, and has lower manpower and equipment requirements, which means that the installation cost of the project is greatly reduced.

Corrosion resistance

The pipe can resist corrosion from a variety of chemical media. The chemicals present in the soil will not cause degradation to the pipe. Polyethylene is an electrical insulator, so there is no concern about corrosion performance attenuation in the application of the product.

Connection Method

1.Conventional pressure water supply: electric melting series, hot melting series.

2.High pressure water supply: flange, thread, clamp, etc.
