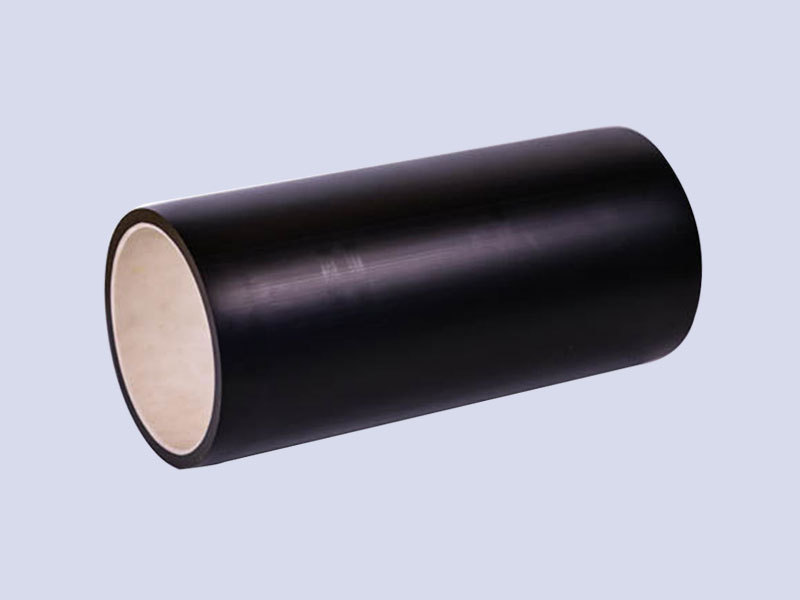

Wear-resistant HDPE pipe
It is a new wear-resistant pipe product with PE100/PE100RC high-density polythylene as the bearing matrix and a modified wear-resistant material co-extruded in the inner layer.The product has the characteristics of good wear resistant and excellent composite.

Share:

Composite pipe--Wear-resistant Wear-resistant HDPE pipe

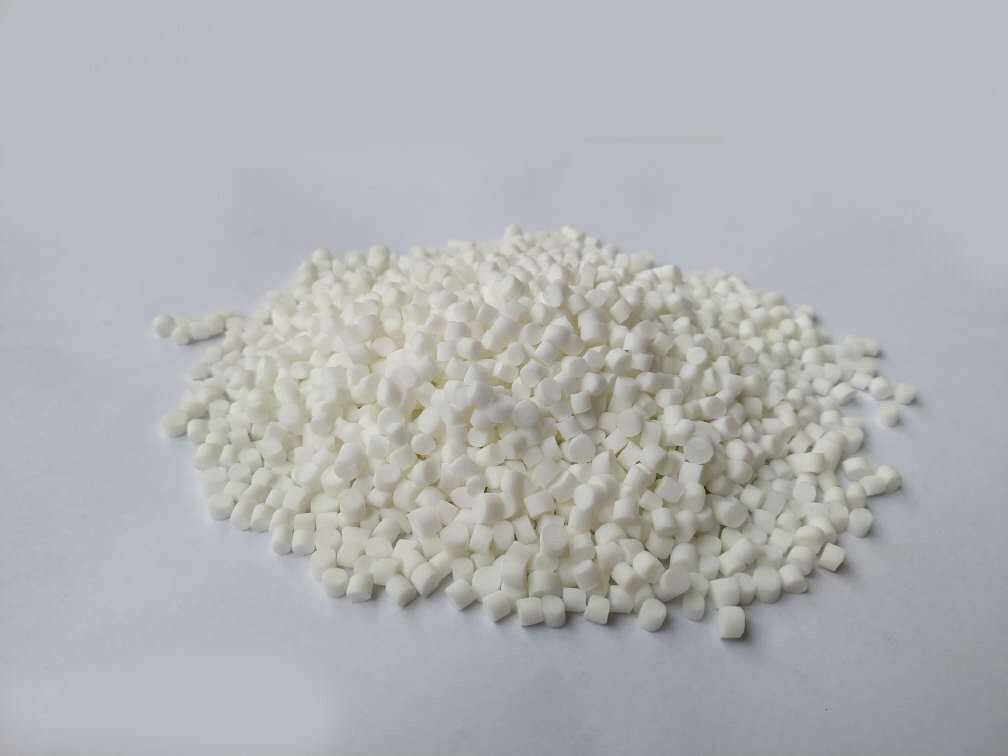

Polyethylene raw material -- Coal mine polyethylene material belongs to Donghong's own patented product - flame retardant and antistatic CNT-modified material, which is wrapped on both internal and external surfaces so that the color of the paint application is maintained permanently. This composite polyethylene material ensures that the flame retardant grade and antistatic grade of the pipe exceeds MT181grade and MT558.1 grade, and improves the mechanical properties of the material.

High Durable Steel Wire --  Adopting coopered steel wire under the requirement of GB/T 14450, achieve the pressure strength ≥2050Mpa.

Adhesive resin -- adopting Donghong's self-developed patented resin products, it excels in strong adhesion and process adaptability.





Performance Characteristics

1.Exceptional Wear Resistance: The specialized design of our wear-resistant PE pipes ensures unrivaled resistance to abrasion, erosion, and wear, guaranteeing an extended service life even in the most challenging environments.
2. Extended Service Life: By significantly reducing the impacts of abrasion, our pipes deliver enduring performance far superior to standard PE pipes, cutting down on downtime and maintenance expenses over the long term.
3. Reduced Friction Losses: Featuring a smooth inner surface, our wear-resistant PE pipes minimize friction losses and pressure drops, thereby optimizing the efficiency of your fluid transportation systems.
4. Corrosion Resistance: Beyond wear resistance, these pipes also boast excellent resistance to corrosion and chemical degradation, ensuring consistent reliability in highly corrosive environments.
5. Lightweight and Flexible: Despite their robust durability, our wear-resistant PE pipes are lightweight and flexible, making them easy to handle, transport, and install on-site with minimal effort.
6. Versatility: Our wear-resistant PE pipes are versatile enough to be employed across various applications, including mining, dredging, slurry transportation, and industrial processing, providing adaptable solutions for a range of industries.
7. Cost-Effective Solution: Offering exceptional durability and performance, our wear-resistant PE pipes are a cost-effective alternative to materials like steel or rubber, ensuring long-term value and significant cost savings.



Mechanical properties

Serial Number
Item
Index
1
Short-term hydrostatic test
Testing conduct under C/T189-2007 requirement, temperature 20 ℃, liquid pipe 2.0 Mpa nominal pressure, gas pipe 3.2 Mpa nominal pressure, testing time 1 hour. All pipes no fracture & no leakage.
Testing conduct under C/T189-2007 requirement, temperature 80 ℃, liquid pipe 1.2 Mpa nominal pressure, gas pipe 1.92 Mpa nominal pressure, testing time 165 hours. All pipes no fracture & no leakage.
Testing conduct under C/T537-2019 requirement, temperature 60 ℃, 1.05 Mpa nominal pressure, testing time 165 hours. The pipe no fracture & no leakage.
2
Burst Pressure
Testing temperature 20 ℃, rise the pressure to burst in 60-70 seconds, the bursting pressure is ≥3 times of the nominal pressure.
3
Negative pressure resistance testTesting negative pressure 0.097 Mpa, keeping 100 hours. Pipe performs no damage or transformation.
4
Pressure cracking stabilityWhen press to 50% of nominal diameter in 10-15 seconds, the pipe doesn't crack or damage.
5
Peel strength
≥100N/cm
Note: Above performance is normalization requirements, in order to explain the standard of features. And the negative pressure resistance test only applicable to gas extraction pipe.


Flame retardant and antistatic properties

Serial numberItemIndex
1
Surface resistance
Water supply & drainage pipe: the arithmetic mean value of outer surface should ≤10x109Ω.
Positive pressure air pipe: the arithmetic mean value of outer surface should ≤10x108Ω.
Pipe for shotcrete: the arithmetic mean value of outer surface should ≤10x108Ω.
Negative pressure air pipe: the arithmetic mean value of outer surface should ≤10x106Ω.
Gas extraction pipe: the arithmetic mean value of outer surface should ≤10x106Ω.
2
Alcohol burner burningThe arithmetic mean value of flame burning time for 6 tested pipes should ≤3 seconds. Single pipe should ≤ 10 seconds.
The arithmetic mean value of flameless burning time for 6 tested pipes should ≤20 seconds. Single pipe should ≤ 60 seconds.

Connection Methed

1.Electrofusion Welding: This sophisticated technique involves using specialized equipment to heat the pipe ends and fittings until they melt and fuse together, ensuring a seamless and robust connection.

2. Butt Fusion Welding: Mirroring the process of electrofusion, butt fusion welding heats the pipe ends and presses them together, creating a seamless and durable joint that stands the test of time.

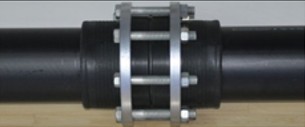

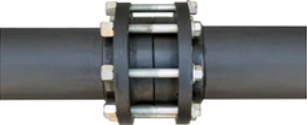

3. Flange Connections: Employing robust flanges attached to the pipe ends, these connections are bolted together with gaskets, forming a secure and reliable seal for various applications.
4. Mechanical Couplings: Utilizing compression fittings or clamps, mechanical couplings offer a quick and efficient method for joining pipe sections, ensuring ease of installation and strong connections.
5. Threaded Connections: Featuring threaded ends, some steel wire reinforced PE composite pipes can be easily screwed together with compatible fittings or adapters, offering versatile and reliable connection options
