High Performance UPVC Water Supply Pipe - Specifications
High performance hard polyvinyl chloride (PVC-u) water supply pipe is a new innovative water supply pipe made of polyvinyl chloride polymer material. Compared with the traditional PVC-U pipe and PVC-M pipe, it improves the mechanical properties of the product by improving the molecular chain structure of PVC, has stronger toughness, improves the pipeline connectivity, and has no leakage. It is suitable for outdoor buried water supply and pipeline corridor water supply with water temperature not greater than 45℃.

Share:

UPVC Water Supply Pipe Specifications:

Working Pressure0.63-2.5mpaMaterialPVC,none plasticizers,
Outside diameter110-1600mm(or as requirements)Length6M,12M(or as requirements)
Thickness2.7-49.0mmStandardEN 1401, EN ISO 1452, EN ISO 15493, EN 1767, ISO4422, ASTM D1785, BS 3505...
FeatureSmooth, Fast flow rate, Lightweight, Non-toxicConnectionSteel frame rubber ring socket connection
standard dimension ratioSDR9-SDR51PVC fittingElbow Coulpling Tee ect and etc.
Packing20' or 40' ContainerApplicationWater supply
Production Capacity120*40ft containers/monthSampleFree sample could be provided
QualityQA & QC system, Ensure traceability of each processWarranty100 years with normal use
ServiceResearch, Design, manufacture, Test, Sales, Solution Providing, After-sale service.No. of employeesmore than 1500 people

Product size:

UPVC pipe size

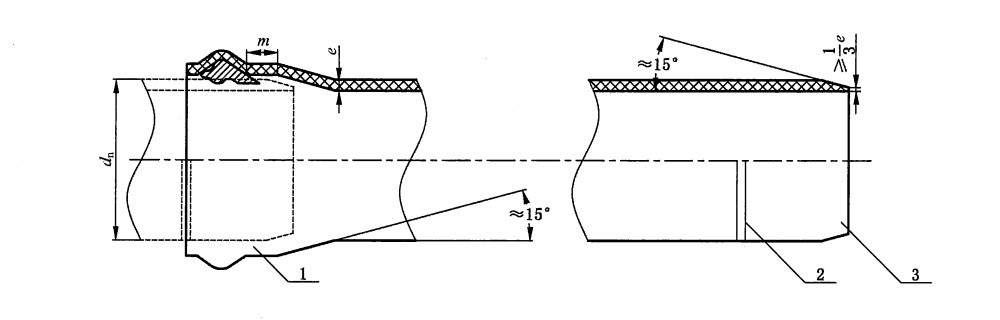

Product connection way:
Steel frame seal ring socket connection:integrated connection, firm and no leakage


Product features:

Large diameter:

DHPI's UPVC pipe diameter can be produced up to 1600mm, while the diameter of ordinary PVC-U pipes is now only 1000mm. The larger pipe diameter can meet the greater flow demand brought about by modern urban development.

Good corrosion resistance and long service life:

UPVC pipes are resistant to corrosion by various acid, alkali, salt and other chemical reagents. UPVC pipes have clear index requirements for the long-term pressure resistance and flexibility of pipes. Under normal circumstances, the actual service life can reach more than 100 years during buried use.

Light weight and easy construction:

The density of UPVC pipe is about 1350~1460kg/m°, which is 1/5 of ordinary carbon steel pipes and 1/3 of concrete pipes. Easy to carry, load and unload, construct and install.

The inner wall is smooth and the fluid resistance is small;

The inner wall of the rigid polyvinyl chloride pipe is smooth, the roughness coefficient is 0.009, and the fluid flow resistance is small. The roughness coefficient of the concrete pipe is about 0.014. For the roughness coefficient of steel pipes, as the service life increases, the corrosion degree of the inner wall of the pipe increases, and the roughness coefficient will gradually increase. When transporting the same fluid of the same diameter and the same nature, the resistance of UPVC pipes is about 30% less than that of steel pipes, and UPVC pipes have low fluid resistance, low energy consumption, and low operating costs.

Better connection:

DHPI's high-performance UPVC pipes use a steel skeleton integrated connection structure, which enables the pipe to withstand a deflection angle of at least 1°, and the maximum deflection angle that can be tolerated is about 3.5° (during normal construction, the deflection angle is not allowed to exceed 1°), which is also well applied to soft foundations or low-frequency earthquake areas.

High Performance UPVC Pipe - Specifications downlod:

High Performance UPVC Pipe.jpg


DPHI's UPVC Water Supply Pipe:

After the above product specification description, I believe you have a preliminary understanding of the UPVC tube. If you want more details or product prices, you can send us your bill of materials and drawings so that we can do what you want. We will follow your drawings to make a quotation, and will also make a more cost-effective recommendation for your products.

We, DPHI, ensureto meet every customer's needs and we provide quality service. As a listed pipeline company in China, we have national CNAS testing laboratory, and has a perfect and strict 10S testing system.pipe Inspection items have appearance, appearance, light permeability, size, physical properties, mechanical properties, negative pressure test, deflection Angle test and connection sealing test.we have the scale and credibility.Ensure payment terms are secure and fast to ensure delivery times and supply availability.

DHPI is your professional partner when you need UPVC pipes. We have skilled staff, professional engineers, technicians, designers, customer service, advanced machines, and more production support.

Send your inquiry and enjoy the benefits of your project. Get in touch now for full information,Contact us for price now!
