  • PVC-O Pipe

›

PVC-O Pipe
PN RATING:
PN12.5 – PN20

SPECIFICATIONS:
DN63 – DN630

APPLICATIONS:
Supply of Drinking Water

Pressured Sewage Pipeline

Industrial Process Pipelines

Recycled Water Pipelines

Farmland Irrigation

Infrastructure Pipe Network

Slurry Pipelines Carrying Corrosive Mine Waste Water

Share：

PVCO Pipe

Products Specification:

PVC-O is the latest evolution of PVC pipe, using advanced production equipment. The biaxial orientation processing technology produces a revolutionary pipe with high strength, high toughness, high impact and fatigue resistance

Product namePVC-O Pipe For Water SupplyPlace of originDHPI-China
Pressure1.0-2.5Mpa(pn10-25)Materialpvc-u mixture，molecular biaxial orientation technology
Outside diameter63-630mm(or as requirements)Length6M,12M(or as requirements)
Thickness1.5mm-37.4mmStandardISO 6993, SABS966, GB/T32018, AS/NZS 4765, ISO 6259...
FeatureSmooth, Fast flow rate, Lightweight, Non-toxic            Connectionrubber ring socket connection
Color
Blue(or as requirements)PVC fittingElbow Coulpling Tee ect and etc.
Packing20-40'' containerApplicationWater supply
Payment termT/T or L/CPrice termsFOB,FCA,CIF,and etc.
Other informationsPls contact us directly

Performance advantages:

  1. Long service life: The pressure resistance of pipes is twice the nominal pressure, which means they can withstand the severe impact of ultra-high pressure, such as water hammer and other faults in the pipe network. The creep properties of the material are very low, extending the durability of the pipe and the design life under nominal pressure for up to 50 years.
  2. Unparalleled impact resistance: the pipe has a high strength and can withstand damage caused by impact. The mesh laminate structure formed by the biaxial orientation of the molecules can prevent cracks from spreading and extending due to scratches. This means that during pipeline installation, pressure test and even operation, damage caused by the collision of foreign objects is minimized, and the service life is prolonged.

  3. Superior water hammer resistance: PVC-O pipe wave speed is much lower than traditional pipe, 4 times lower than the cast iron pipe , which means that water hammer formed by the change of water pressure and water volume is reduced, thereby reducing or even eliminating the possibility of bursting when the water network is closed.

  4. Excellent flexibility: Due to its excellent material flexibility, the pvc-o pipe can withstand short external loads. Once the load is removed, the original shape can be quickly restored, reducing the risk of possible cracking due to soil settling or sharp edges of rock or machinery. This superior performance ensures that once the pipe is buried underground, it can withstand the effects of surface changes.

  5. Lightweight operation: Compared with other types of pipes, PVC-O is lighter and easier to operate. PVC-O pipes weigh half as much as traditional plastic pipes and are 6-12 times lighter than cast iron pipes . In most cases, cranes are not required for handling. More importantly, due to the ease of connection, flexibility and impact resistance, PVC-O is outstanding in terms of performance and installation speed, greatly reducing installation costs.

Impact resistance performance:

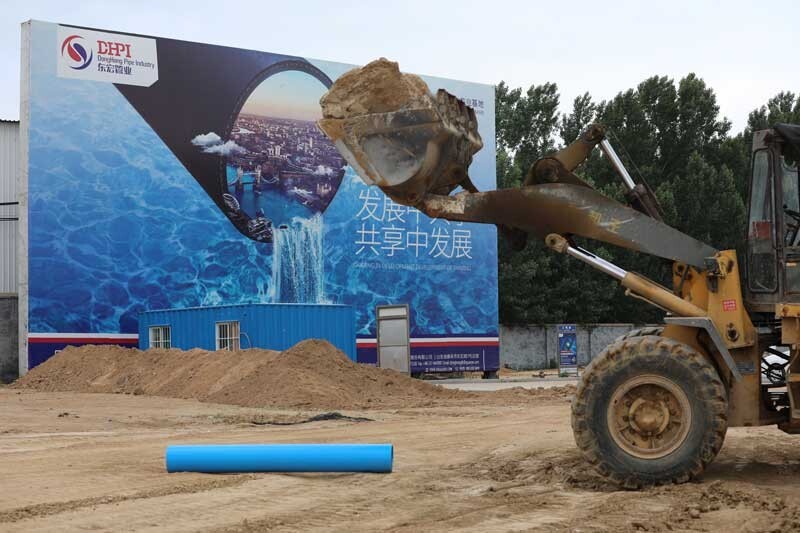

pvc-o pipe shock resistance test-1

Lift the boulder

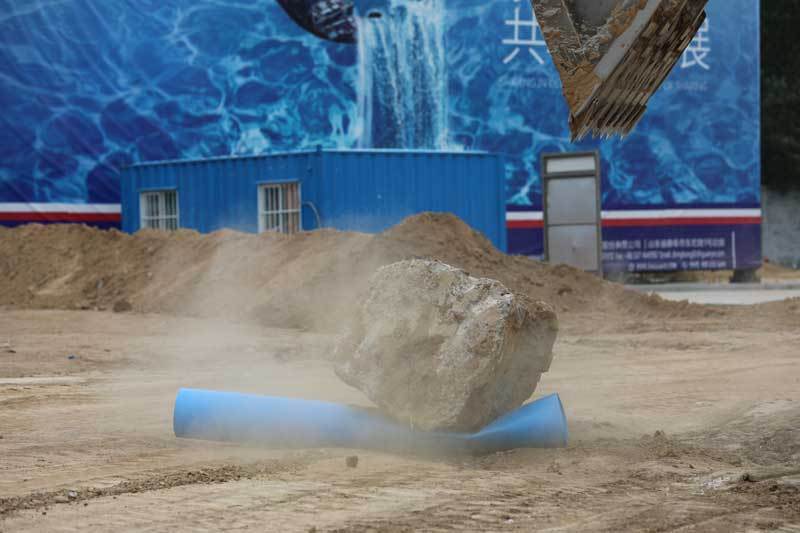

pvc-o pipe shock resistance test-2

Hit the pipe

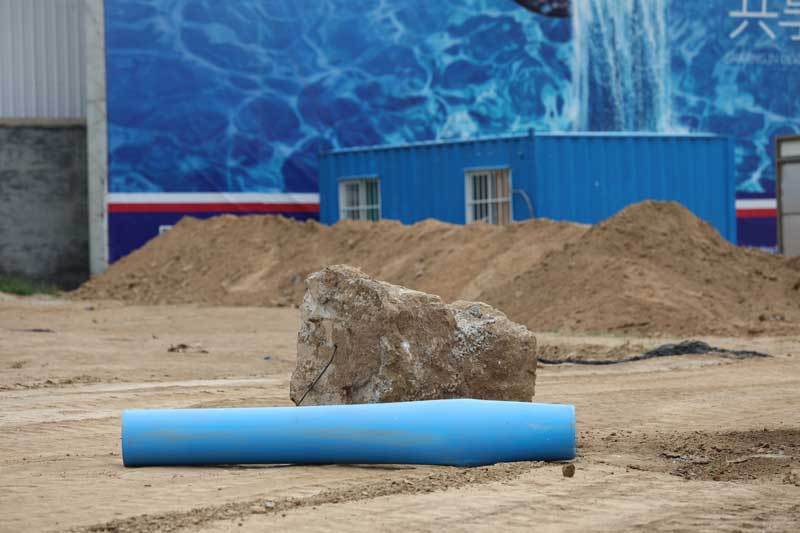

pvc-o pipe shock resistance test-3

Deformation of pipe

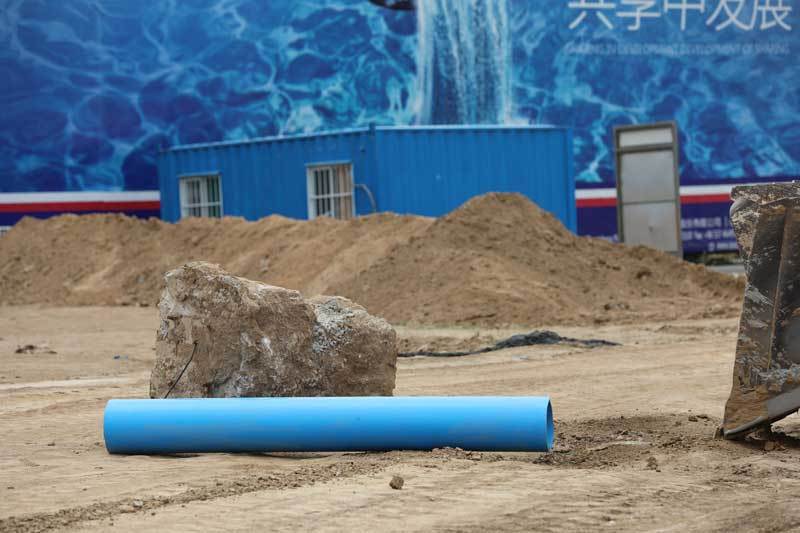

pvc-o pipe shock resistance test-4

pvc-o pipe recovery


Download：

arrow  pvc-o pipe for water supply spec..pdf


Why chose us :

At DHPI, we can provide the OPVC pipes what you desired. We are a listed pipeline company in China with more than 1,000 employees and more than 200 R&D staff. We can offer you products with competitive prices and excellent quality. Second, we can also provide design service according to the actual needs of your project, customized design is one of our advantages, we have rich OPVC pipeline project implementation experience, understand the actual needs of owners and users. Thirdly, we operate a professional pipe fitting production workshop to provide all the necessary products, thereby streamlining your procurement process and reducing your time costs.

You can choose DPHI as your leading manufacturer and supplier at any time.  we secure the product quaility of every client and customer of DPHI. We will be your reliable partner in your businesses and 100% trust worthy opvc pipes supplier.

For more information regarding our opvc pipes, You may contact us now!
