MPVC Water Supply Pipe : Modified Polyvinyl Chloride
The PVC-M pipe is called Modified Polyvinyl Chloride pipe. Pvc-m is extruded by adding impact modifier to PVC material through advanced processing technology. It has the characteristics of high strength and high toughness, and its toughness and impact resistance are significantly improved compared with traditional PVC pipes. Its toughness is 6-10 times higher than that of UPVC, and the notched impact strength is ≥30Mpa (20℃), which is more than 3 times that of UPVC.

Share:

Product profile:

Product nameMPVC Water Supply Pipe : Modified Polyvinyl Chloride
Working Pressure0.63-2.0 MpaMaterialpvc,blending modification
Outside diameter20-800mm(or as requirements)Length6M,12M(or as requirements)
Thickness2.0-47.4mmStandardISO
FeatureImpact resistance, water hammer resistance, thin wall, light weight and low costConnectionSteel frame rubber ring socket connection
standard dimension ratioSDR17-SDR51PVC fittingElbow Coulpling Tee ect and etc.
Ring stiffnessS8-S25ApplicationWater supply

Product feature:

High burst strength: Due to the increased strength of the material, the pipe wall can be thinner, while reducing the weight per meter of pipe.

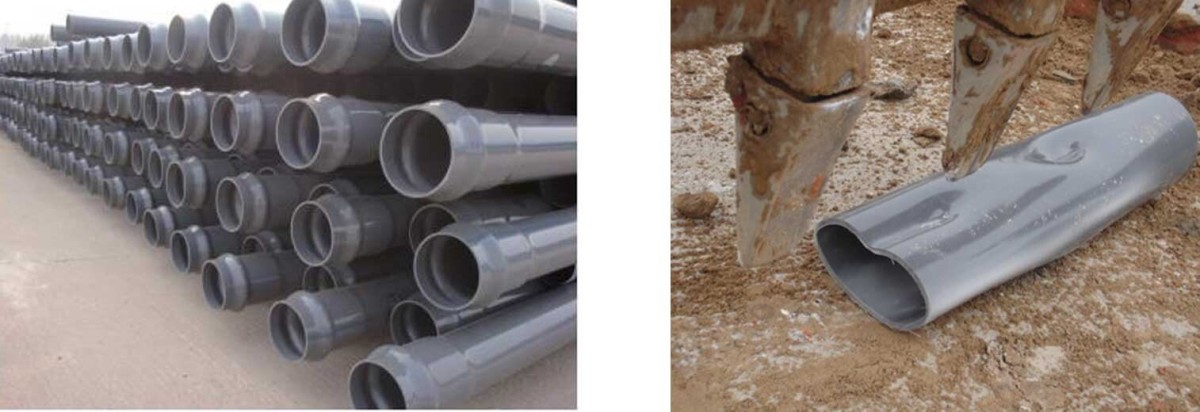

Impact strength: It has good damage resistance during storage, treatment and installation, and its toughness reaches 6-10 times higher than the impact of UPVC, and the notched impact strength is ≥30Mpa (20℃), which is more than 3 times that of UPVC.

Low temperature resistance: The pipeline can be installed at -20℃.

Compressive load: Layered tube wall construction reduces the risk of premature failure under point load conditions.

Light weight: Compared with the homogeneous PVC-U pipe, the weight is lighter, about one-seventh of the cast iron pipe, easy to handle and install.

Flow performance: The wall thickness of PVC-M pipe is much lower than that of homogeneous PVC-U pipe, and its flow performance is improved by about 5%.

Integral connection: The in-line continuous flaring process makes the ring seal a "factory assembly", reducing the risk of ring displacement during connection.

Water performance: Non-corrosive smooth pipe wall structure makes it have excellent water performance.

Water shock resistance and fatigue resistance: excellent performance.



Donghong PVC series products have excellent cost-effective advantages. Based on the positioning of high-quality PVC pipes, it has a quality advantage compared with large-scale enterprises in combination with the precision of raw material formula, processing equipment and feeding system. Based on quality stability, reduce costs and optimize formulations. It has the advantage of comprehensive cost performance.
