High Performance UPVC Drainage Pipe - Specifications

High Performance UPVC Drainage Pipe is made of PVC as the main raw material and extruded. It is a new innovative low-pressure sewage drainage pipe with better toughness than ordinary UPVC pipe. The formed steel skeleton sealing connection structure has stronger sealing, and can effectively avoid the dislocation and deformation of the rubber ring during the pipeline construction and installation process, ensure zero leakage of the interface components, and ensure the installation quality and system sealing; An insertion depth is marked at the socket end of the pipe. The high performance UPVC pipeline has different diameters and ring stiffness with a maximum outer diameter of 1600mm.

Product name	High Performance UPVC Drainage Pipe
Working Pressure	0.32-0.63mpa,low pressure	Material	PVC mixed ingredients,none plasticizers,
Outside diameter	110-1600mm(or as requirements)	Length	6M,12M(or as requirements)
Thickness	3.2-45.9mm	Standard	ISO
Feature	Smooth, Fast flow rate, Lightweight, Non-toxic	Connection	Steel frame rubber ring socket connection
standard dimension ratio	SDR26,SDR28,SDR34,SDR41,SDR51	PVC fitting	Elbow Coulpling Tee ect and etc.
Ring stiffness	SN2,SN4,SN8,SN12.5,SN16	Application	Drainage

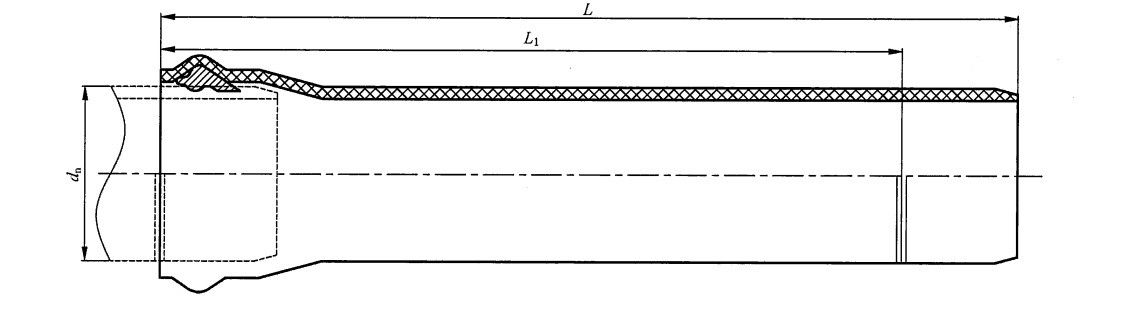

Product size:

Product connection way:
Steel frame seal ring socket connection：integrated connection, firm and no leakage

Product features:

1, pipe hydraulic performance test: at 20℃, 4 times the nominal pressure, no rupture or leakage for 1 hour, can also be used as a low-pressure water transmission system pipeline;

2, Set the ring stiffness grade according to the wall thickness: the highest ring stiffness grade SN16, stronger resistance to geological settlement;

3, good toughness: when flattened to 40% of the outer diameter or even higher displacement, the pipe has no rupture and good toughness.
4, Stronger seal: The use of super-strong steel skeleton sealing ring and a flaring molding process, steel skeleton sealing rubber ring and pipe integrated molding. Epd material rubber ring, with the built-in steel skeleton, has a double holding anti-ejection structure, and anti-aging, anti-compression deformation ability, long service life, excellent sealing, in a certain range of declination can still maintain the tightness of the joint, can effectively prevent leakage caused by displacement vibration of the pipe.
5,Many caliber specifications: caliber dn110-1600mm. To meet the needs of greater traffic brought by the development of modern cities.

Product inspection items：
We have national CNAS testing laboratory, and has a perfect and strict 10S testing system.pipe Inspection items have appearance, appearance, light permeability, size, physical properties, mechanical properties, negative pressure test, deflection Angle test and connection sealing test.

High Performance UPVC Drainage Pipe - Specifications downlod:

pvc-uh drainage pipe spec.pdf
